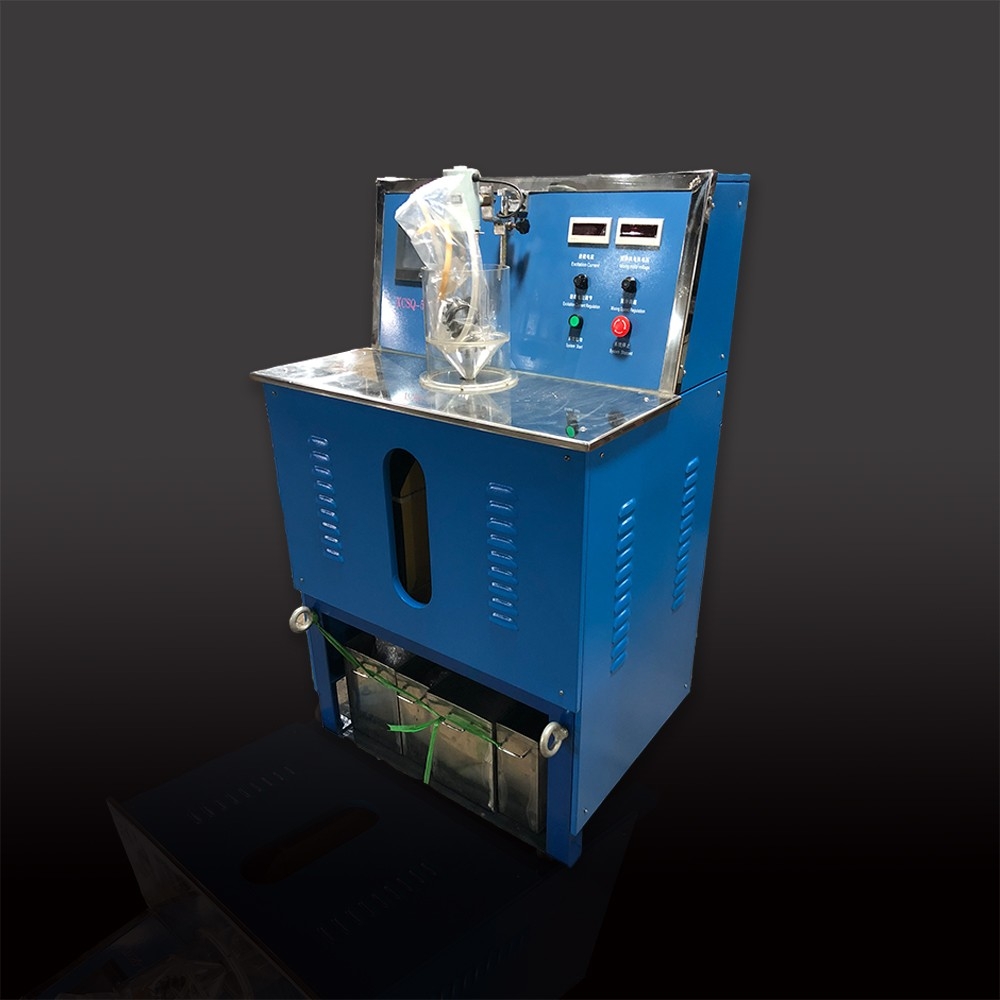

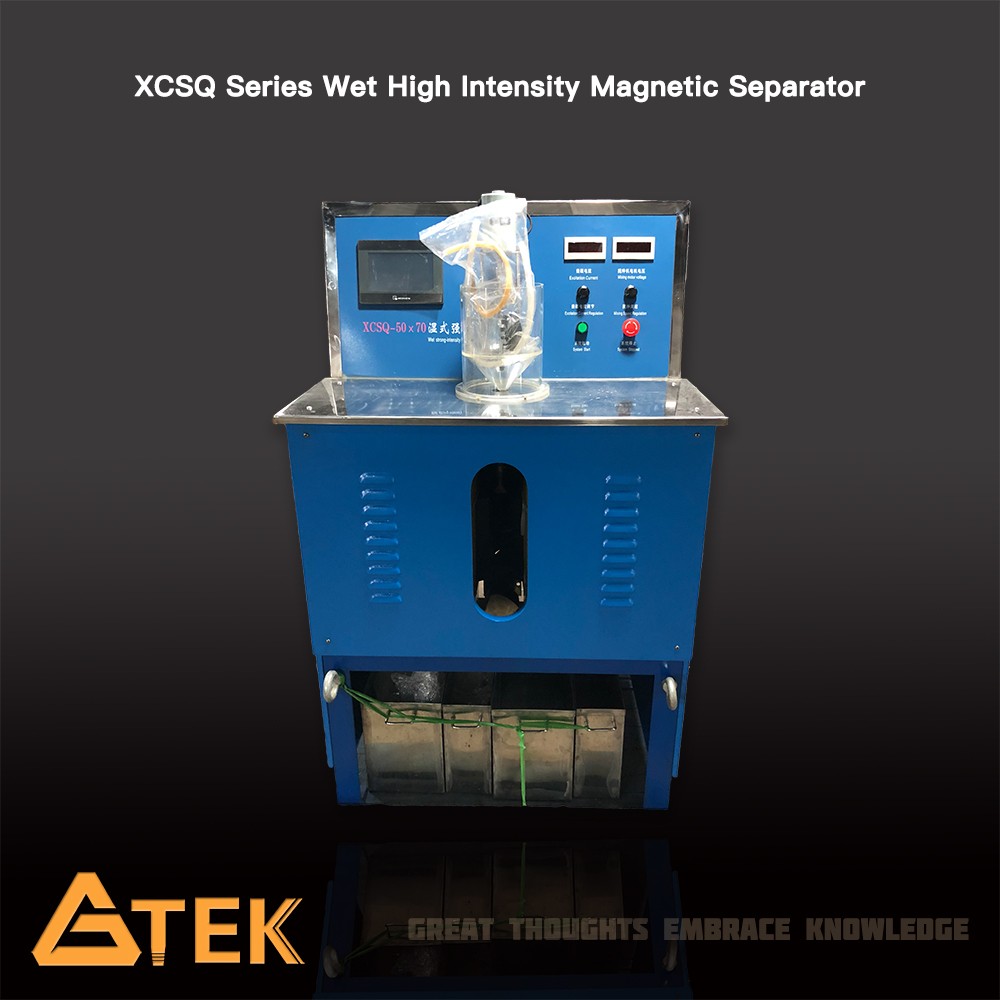

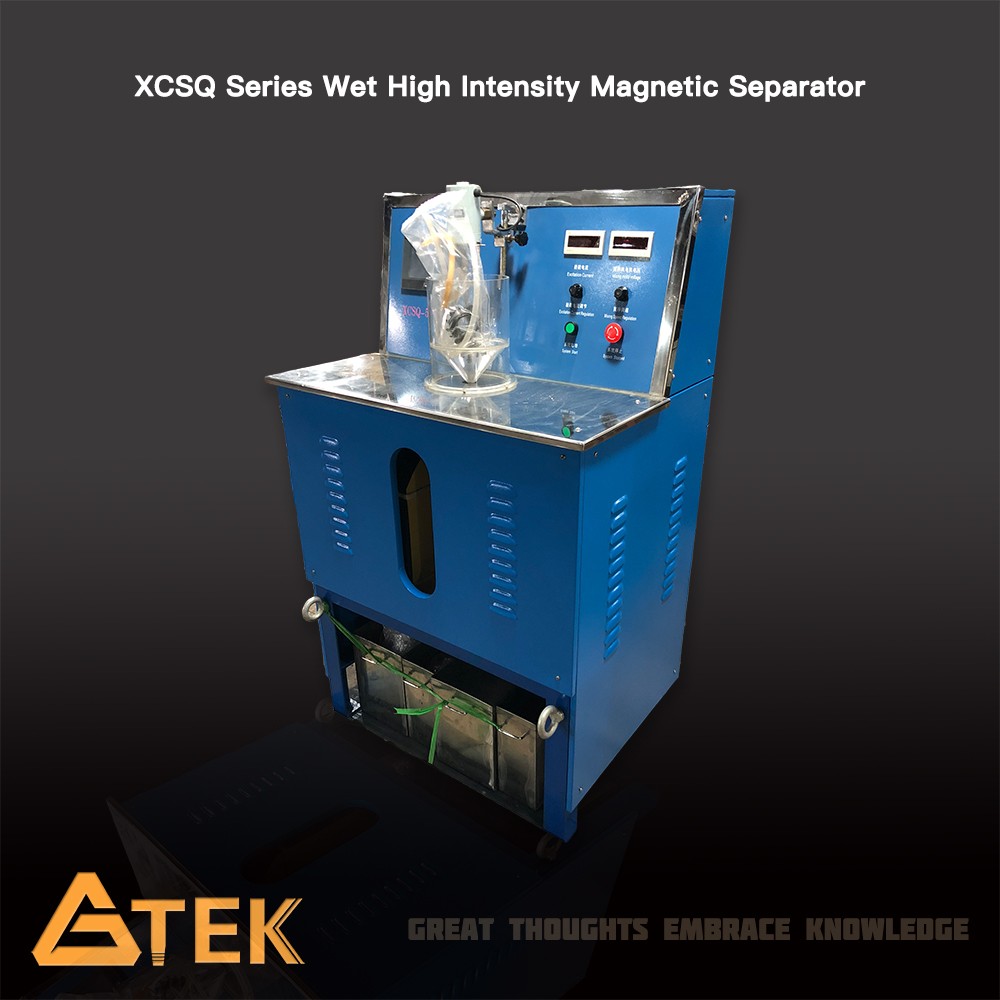

Wet High Intensity Magnetic Separator
Wet High Intensity Magnetic Separator is suitable for beneficiation of fine-disseminated hematite, martite, limonite and siderite in mineral processing laboratories, it can also be used for processing some of rare metals.
Description
XCSQ Wet High Intensity Magnetic Separator is suitable for beneficiation of fine-disseminated hematite, martite, limonite and siderite in mineral processing laboratories, it can also be used for processing some of rare metals. GTEK laboratory WHIMS has achieved good test results beneficiation index in processing of low grade oxidized iron ore. For manganese, bench placer, wolframite, tin, glass sand and phosphate, it is also very efficient.
Working Principle
Features
1.Large magnetic action area and large processing capacity;
2.High magnetic intensity and high gradient.
Model | XCSQ50×70 | |
Separating Chamber Size (mm) | 50×70×220 | |
Magnetic Intensity | Background Field Intensity | 0-10000 |
1.5mm Separation Chamber | 0-23000 | |
2mm Separation Chamber | 0-22000 | |
3mm Separation Chamber | 0-20000 | |
Excitation power supply | Input | 220V 50HZ |
Output | 0-118V 1-25A | |
Coil Cooling Type | Forced Air Cooling | |
Maximum Feeding Size (mm) | 1 | |
Capacity (kg/hr) | 4-5 | |
Power Consumption (kW) | ＜4 | |
Dimensions (mm) | 880×740×1480 | |
Weight (kg) | 795 | |
