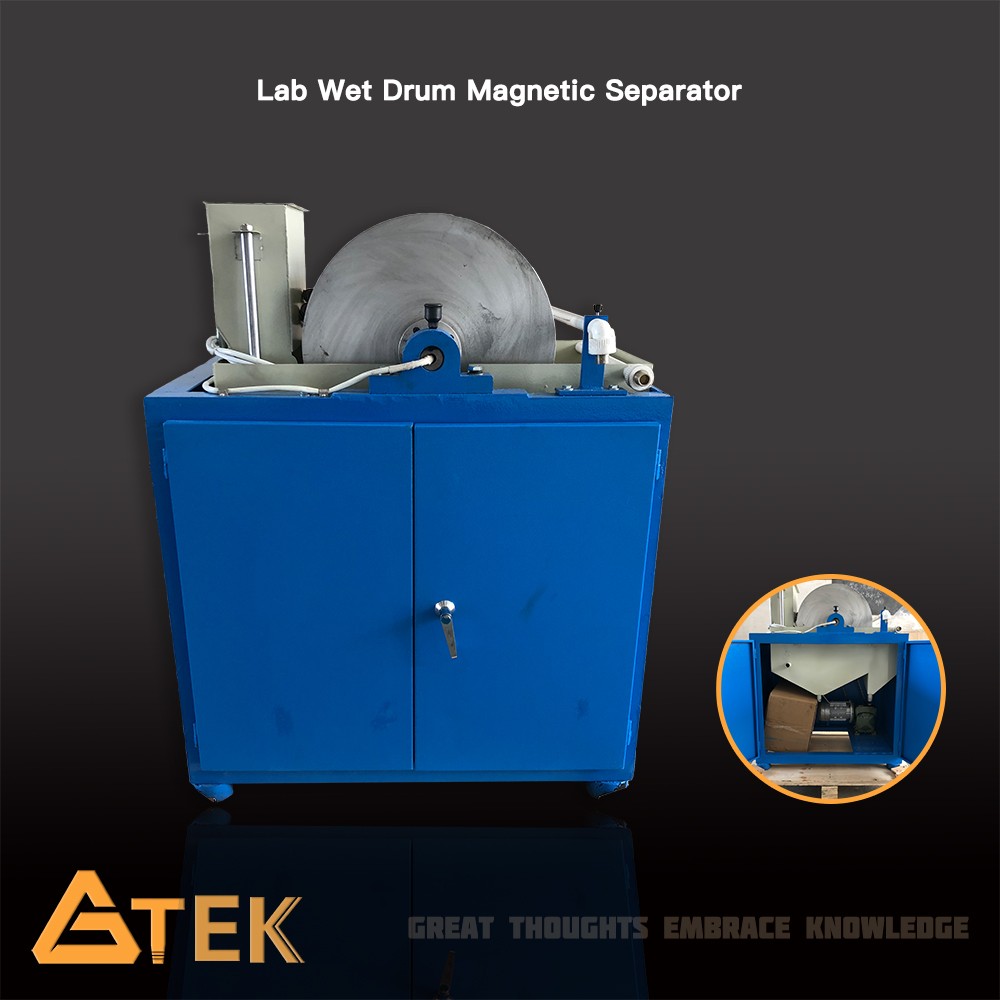

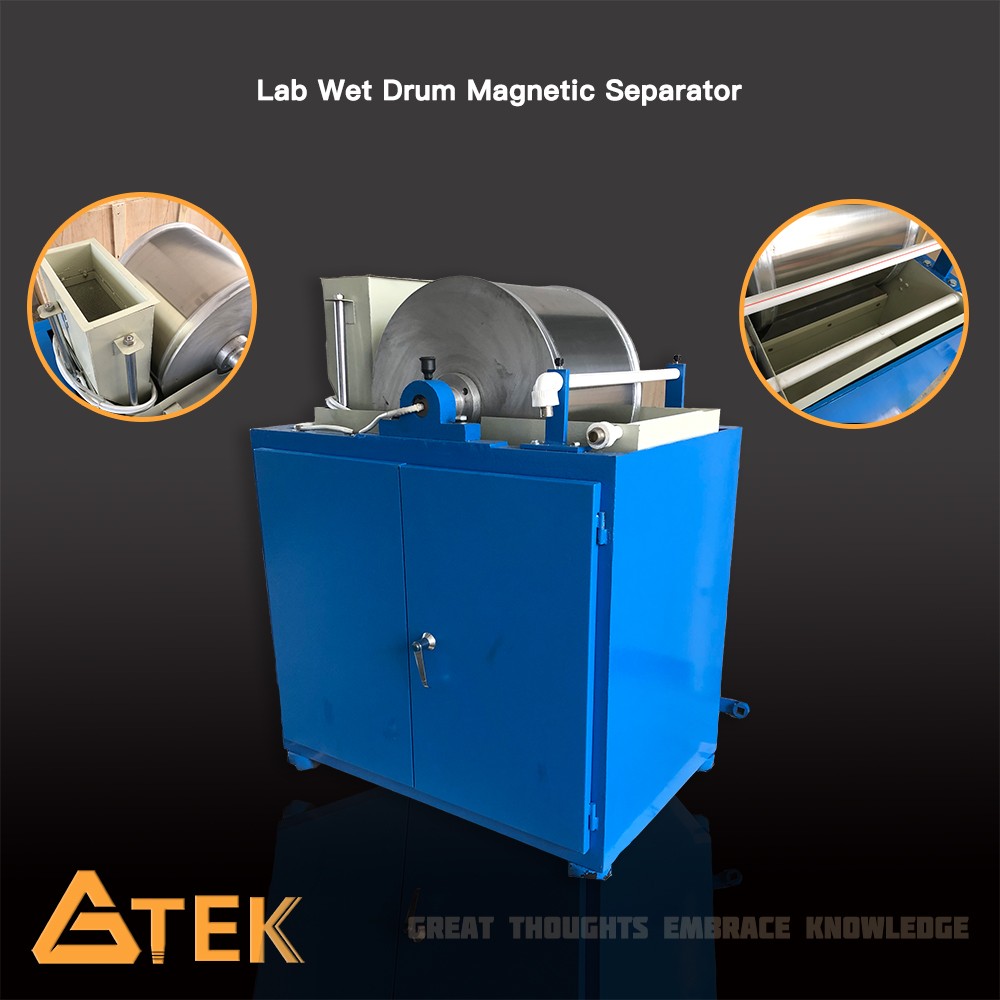

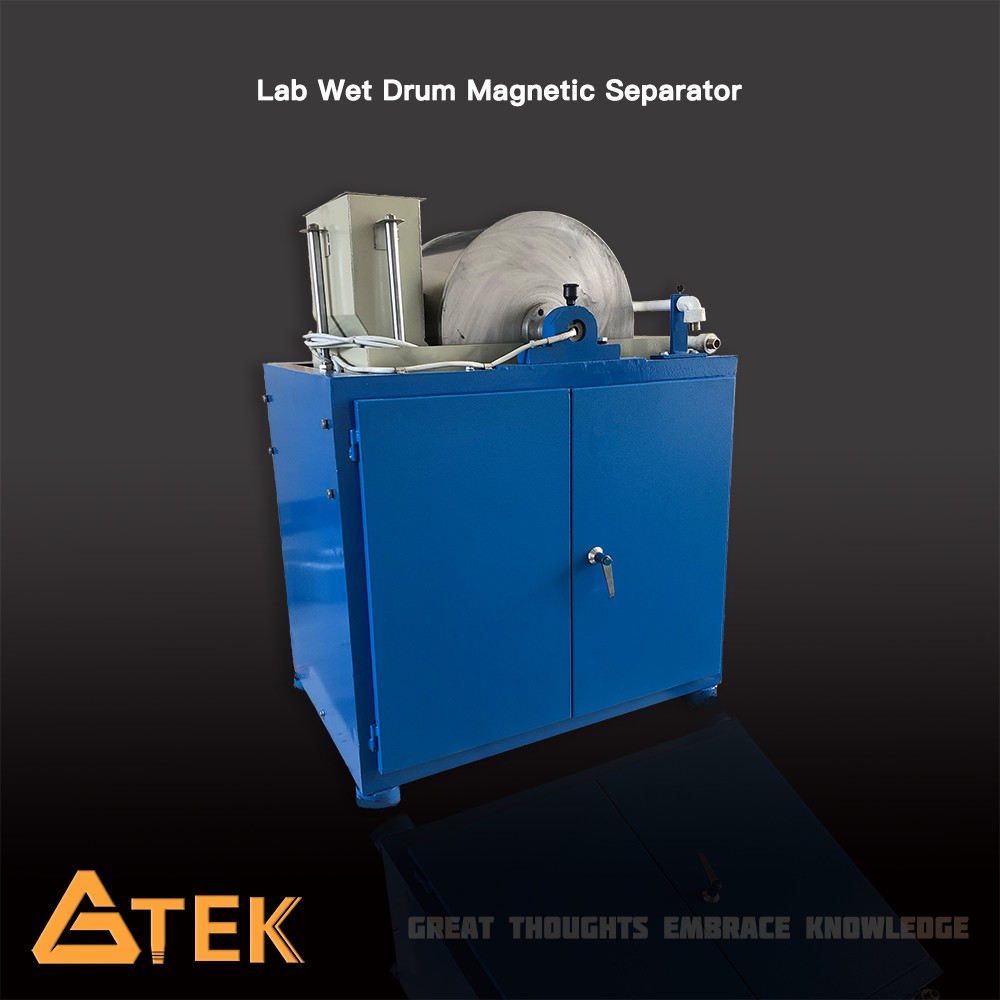

Lab Wet Drum Magnetic Separator


GTEK XCRS Laboratory Wet Drum Magnetic Separator is designed for the laboratory investigation of beneficiation of strongly magnetic minerals such as magnetite, maghemite, ilmenite and pyrrhotite.




Ask For Quote PDF Download

Description

GTEK XCRS Laboratory Wet Drum Magnetic Separator is designed for the laboratory investigation of beneficiation of strongly magnetic minerals such as magnetite, maghemite, ilmenite and pyrrhotite. This low intensity magnetic separator is suitable for processing of fine strongly magnetic minerals, especially for removal of magnetic substance from powdered materials and purification of magnetic materials. It has wide application in the field of mining, metallurgy, glass industry, ceramics industry, as well as in the area of ash and slag processing.


Working Principle

XCRS Drum Wet Magnetic Separator is composed of two parts: magnetic separator main body and power supply for the drum. The main body of the magnetic separator includes: frame, magnetic drum, ore tank, water spray pipe, driving device, and feeding hopper.

1.Frame: welded by angle steel, it is the supporting part of the whole machine.


2.Magnetic drum: It contains four exciting coils and a magnetic core, and an additional magnetic pole without an exciting coil is installed on the ore discharge side to facilitate unloading.These form sector and are fixed on the mandrel.The mandrel is fixed on the frame through bearing busing.The drum is made of non-magnetic aluminum and stainless steel.The connection of sector coil causes the alternation of magnetic field polarity on every magnetic palm.The magnetic particles turn 180°each time it passes one magnetic pole.Under the action of magnetic stirring,the quality of magnetic products can be improved.At one end of the mandrel is an extension of square structure which can be turned by wrench to get the magnetic pole inside the drum to rotate axially so that it can meet the requirements for the sorting of different types of ores.

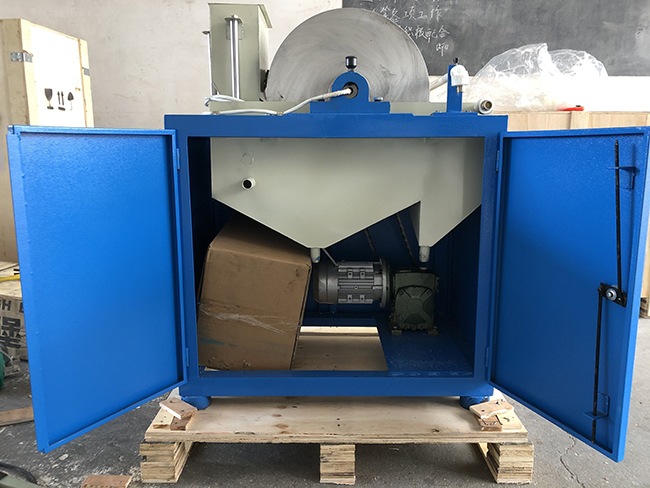

3.Driving Device:The driving device is installed at one side of the bottom of the frame,In order to reduce the center of gravity of the whole machine, the transmission part is composed of three phase AC motors and worm gears and worm gearboxes. The output of the gearbox is transmitted to the drum through a chain, which drives the drum to rotate (the magnetic pole does not rotate with it) The rotation speed is 25 rpm, and the direction of the rotating force of the magnetic drum is the same as the feeding direction.

4.Ore Tank:It is welded by aluminum and stainless steel plate, and is fixed on the frame by screws; there is an overflow port on the feed side of the ore tank to maintain the liquid level, and a concentrate nozzle is provided at the lower part of the concentrate ore tank for connection of concentrates.

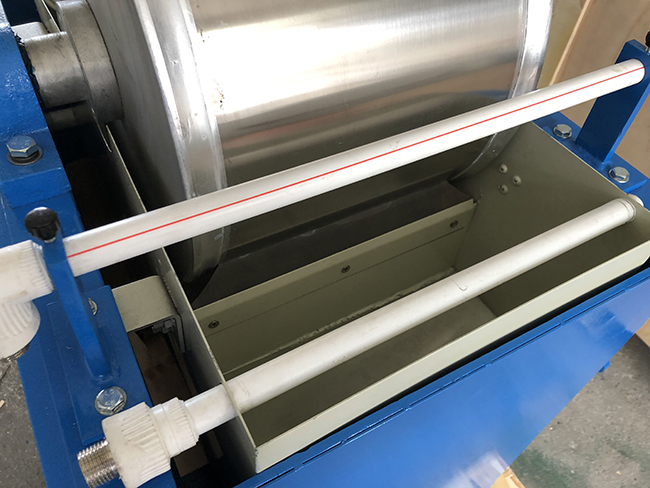

5.A water spray pipe: installed on the frame can be connected to the indoor water source for washing the concentrate on the magnetic drum; the water spray angle can be adjusted by rotating the water spray pipe.

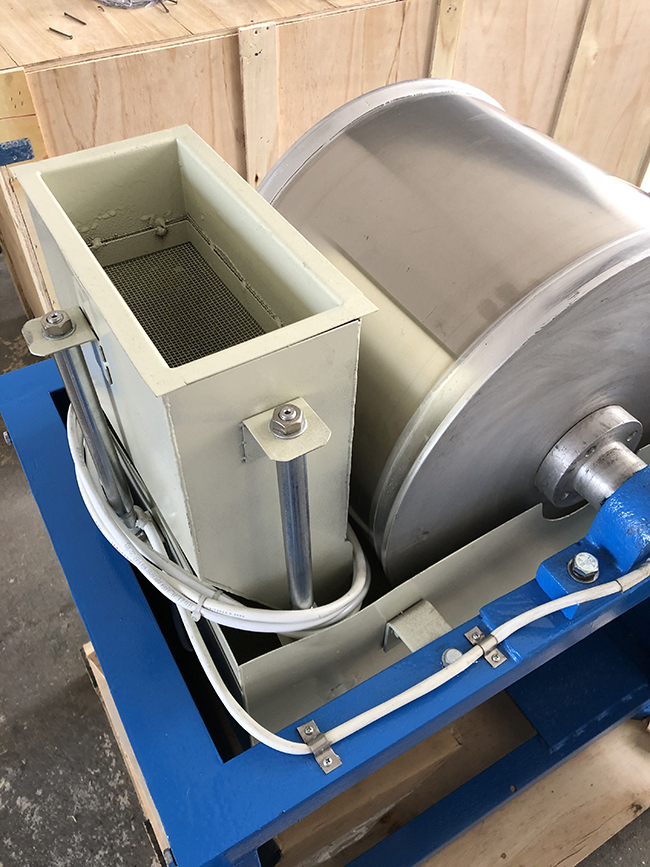

6.Feeding Hopper:The box body is welded by stainless steel plate, its role is to ensure the uniformity when feeding.




Features

1. Electromagnet system and concurrent tank type;

2. Small in volume and light in weight;

3. Easy operation and convenient maintenance;

4. Uniform feeding of ores due to elevated agitating tank;

5. Wide range of magnetic intensity.


Model

XCRS400×300

XCRS400×240

Drum Size (mm)

Φ400×300

Φ400×240

Drum Speed (r/min)

25

25

Magnetic Intensity (GS)

1250 (100 kA/M)

1250 (100 kA/M)

Feeding Size (mm)

<2

<2.5

Capacity (kg/hr)

20-60

20-50

Motor Power (kW)

0.25

0.25

Overall Dimensions (mm)

1515×1040×1500

1030×614×1196

Weight (kg)

200

300
