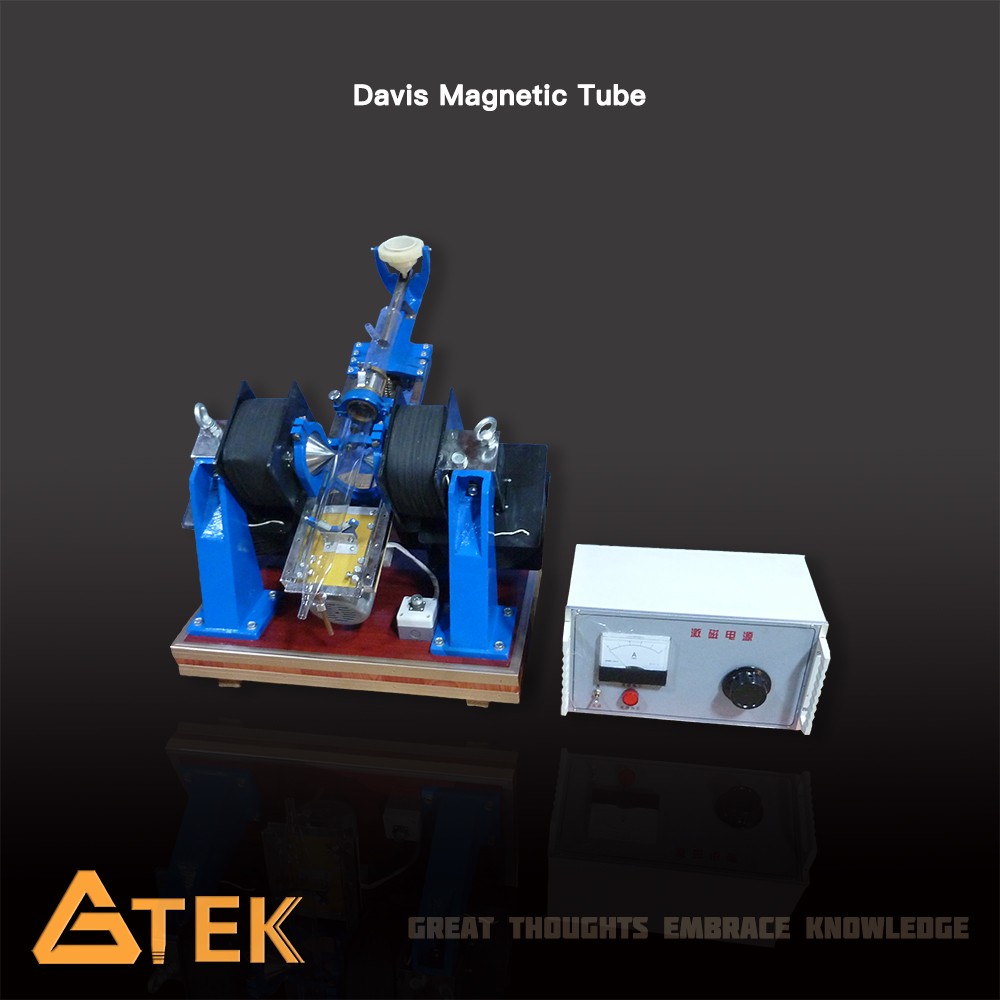

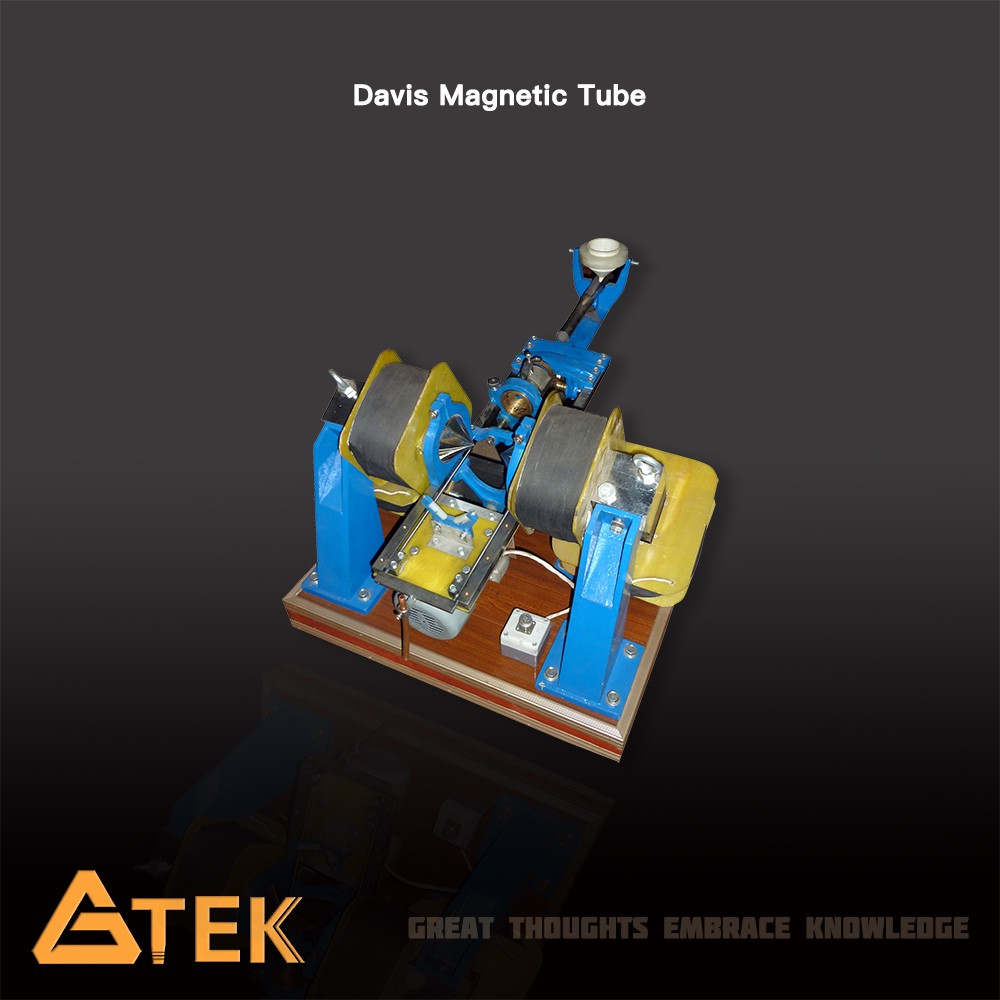

Davis Magnetic Tube


GTEK Davis Tube Magnetic Separator or Davis Magnetic Tester is a laboratory machine designed to separate a small sample of pulverized magnetic iron ore into magnetic and non-magnetic fractions.




Ask For Quote PDF Download

Description

GTEK Davis Tube Magnetic Separator or Davis magnetic tester is a laboratory machine designed to separate a small sample of pulverized magnetic iron ore into magnetic and non-magnetic fractions.

XCGS Davis Magnetic Tube or Davis magnetic tester can be used in laboratories of mine, metallurgy and geology.

Working Principle

The Davis Tube Magnetic Separator is positioned between poles of a powerful electromagnet at an angle of 45° (adjustable) that is agitated back and forth and rotated by a motorized system. Magnetic particles are collected inside the tube in the zone of intense magnetism and all non-magnetic minerals are washed out.

Features


Magnetic Field Parameters

Pole Pitch

52 mm

Magnetic Field Intensity

2500 / 3500 GS (stepless regulated)

Glass Tube Parameters

Diameter

Φ 50 mm

Oscillation Frequency

70 times/min

Migration Distance

40 mm

Other Parameters

Sample Granularity

0.5 mm

Power Supply

1P / 220V / 50 Hz

Net Weight

200 kg
