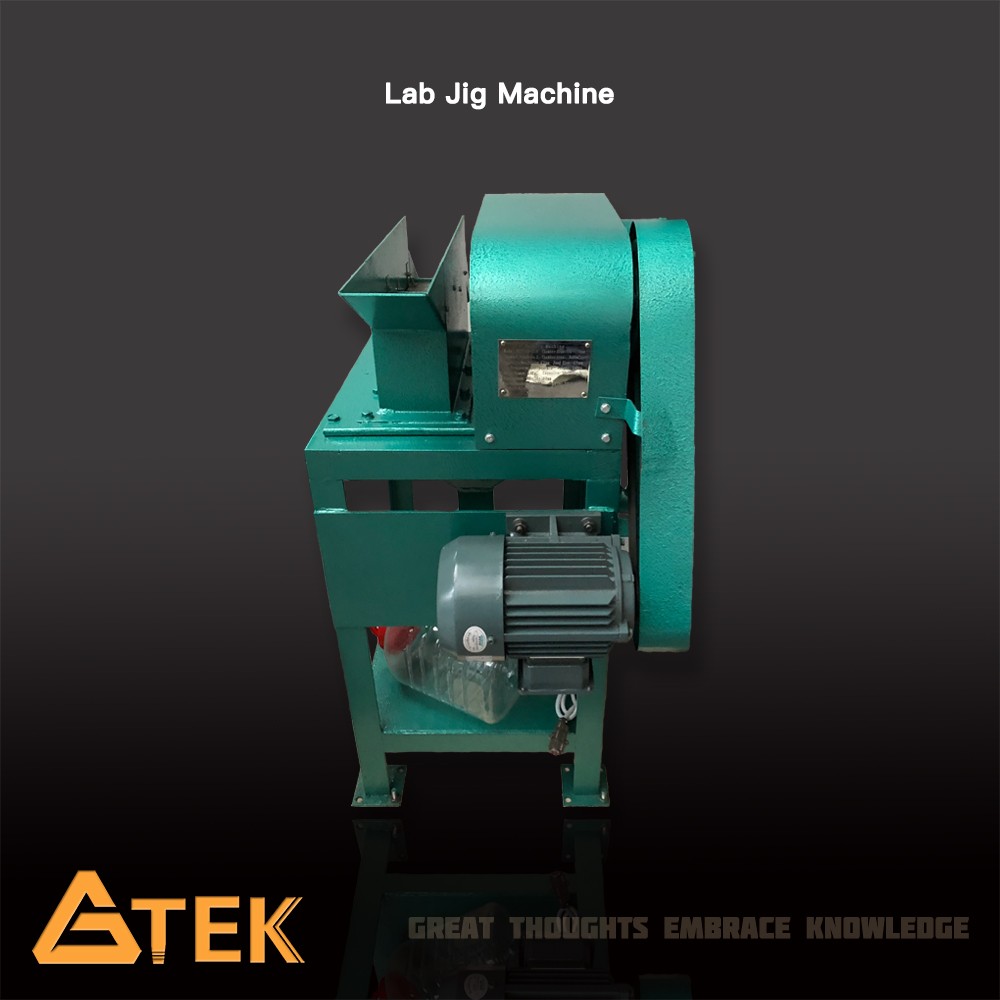

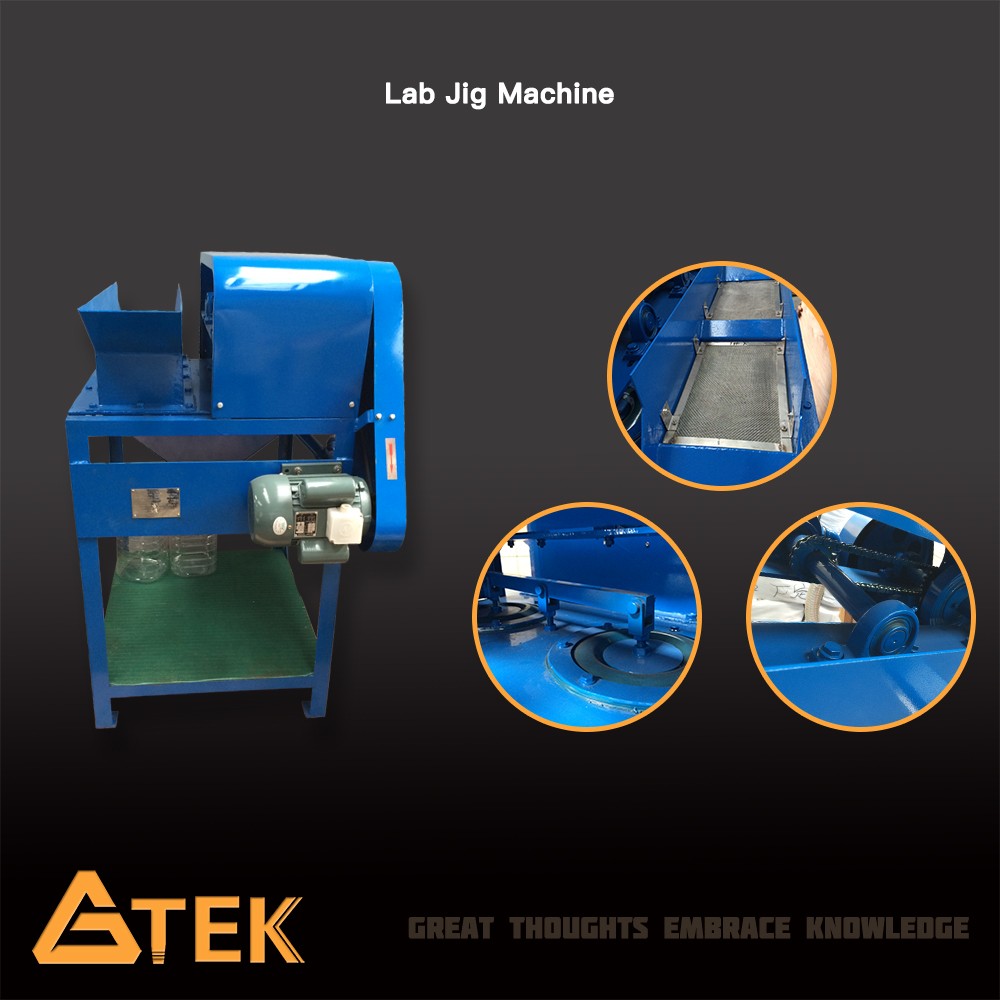

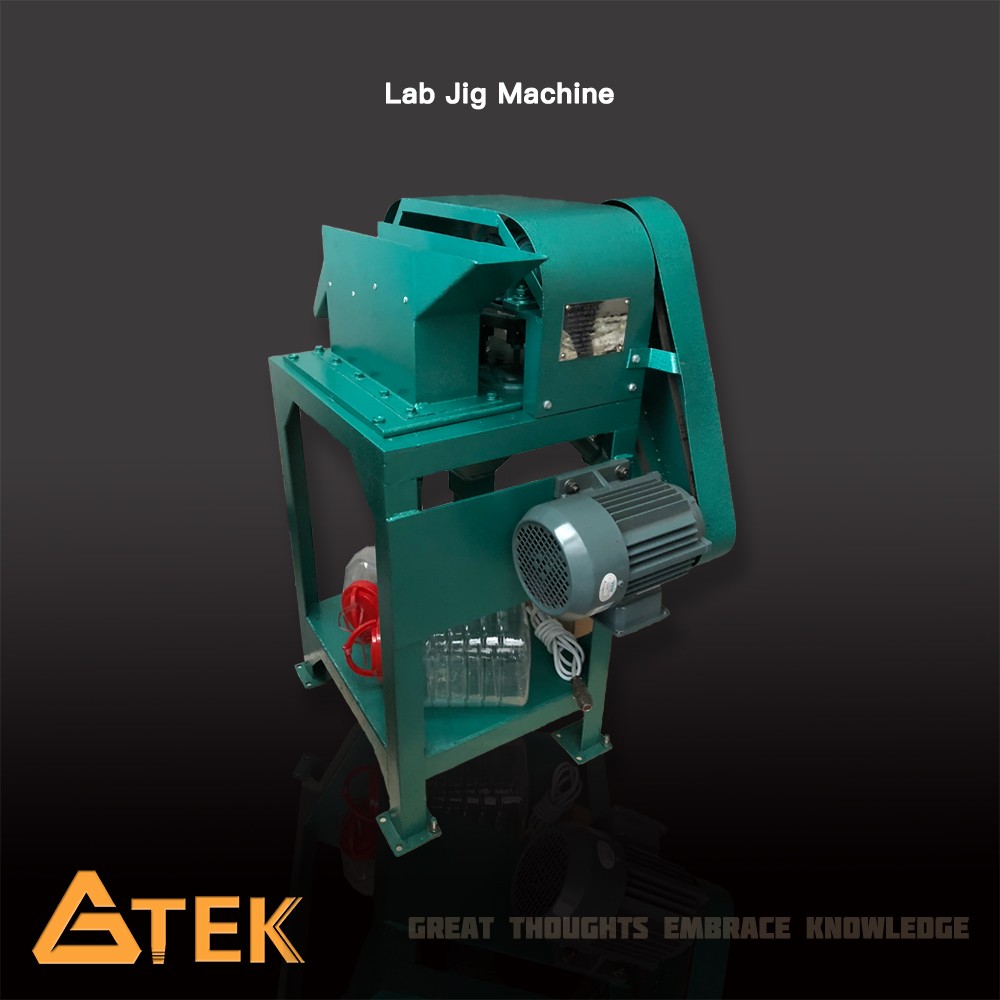

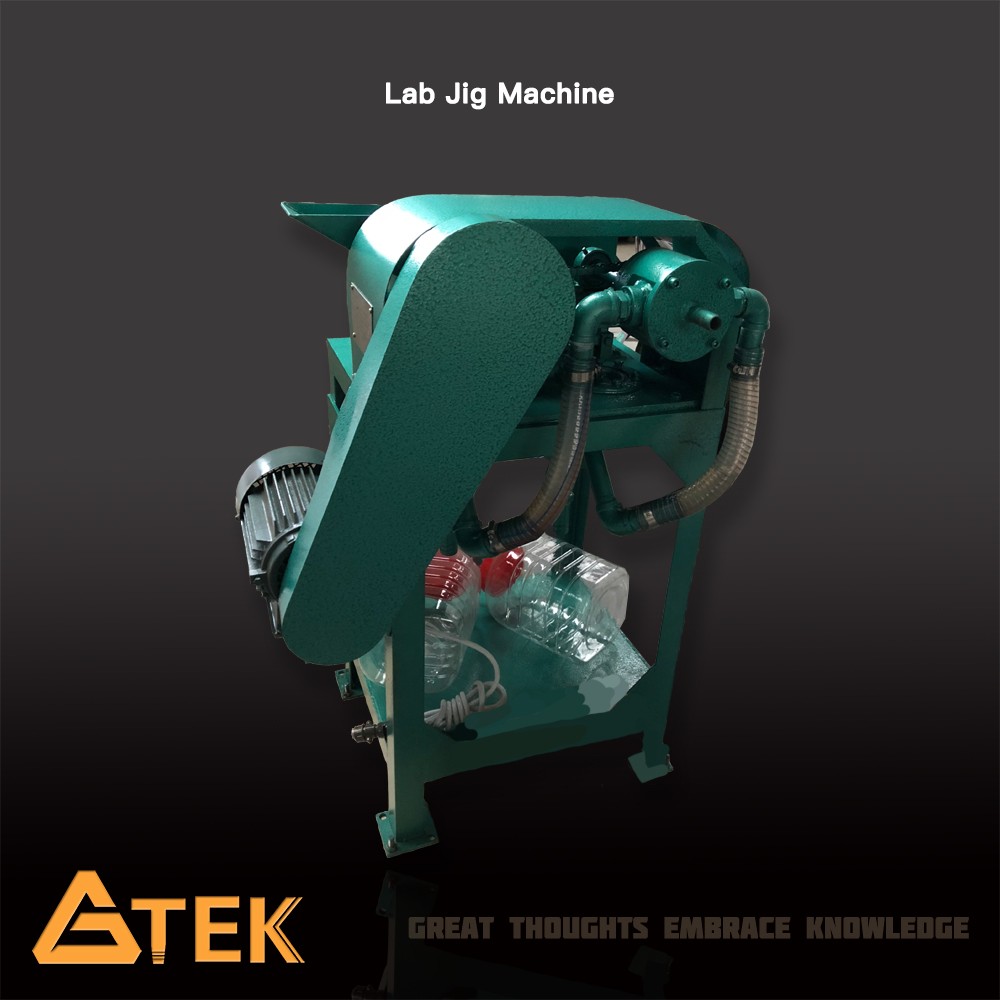

Lab Jig Machine
GTEK Laboratory XCT Diaphragm Jig Machine is an ideal instrument for research of beneficiation of ferrous metal and nonferrous metal.
Description
Laboratory Jig Machine belongs to gravity concentrating device that separates material based on differing densities of the material. Laboratory Jig Machine is widely used in concentration of heavy minerals such as tin, gold, tungsten, manganese and barite. GTEK Laboratory XCT Diaphragm Jig Machine is an ideal instrument for research of beneficiation of ferrous metal and nonferrous metal.
Working Principle
Laboratory Jig Machine separates material based on differing densities of the material.
Check more structure details in the PDF Download above.
Features
Model | XCT-100×150 | XCT-200×300 | |
Chamber Size | Length (mm) | 150 | 300 |
Width (mm) | 100 | 200 | |
Chamber Number | 2 | 2 | |
Chamber Area (m²) | 0.03 | 0.06 | |
Eccentric Maximum Stroke (mm) | ≤20 | ≤32 | |
Feeding Size (mm) | ≤3 | ≤6 | |
Stroke Frequency (times/min) | 420 | 346 | |
Capacity (kg/hr) | 20-70 | 70 | |
Backwater Consumption (kg/min) | 0.117 | 4 | |
Feeding Water Consumption (kg/min) | 0.10 | 2.4 | |
Motor | Power (kW) | 0.55 | 0.75 |
Rotation Speed (rpm) | 1400 | 1390 | |
Dimensions | Length (mm) | 760 | 1100 |
Width (mm) | 530 | 820 | |
Height (mm) | 1135 | 1270 | |
Weight (kg) | 170 | 200 | |
