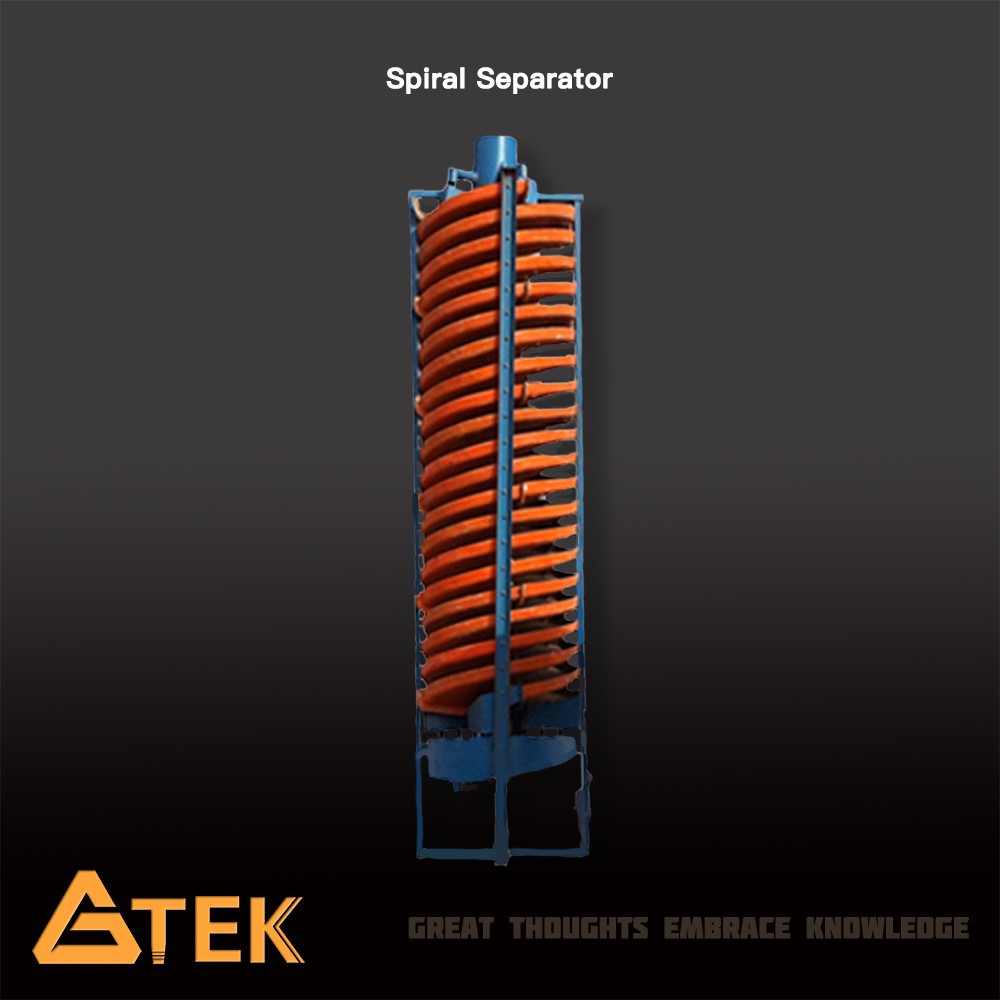

GTEK laboratory spiral separators incorporate state-of-the-art design and manufacturing technology.
GTEK laboratory Spiral Separators/ Spiral Concentrator incorporate state-of-the-art design and manufacturing technology. Our spiral separators are made of high quality polyurethane with fiberglass supporting and wearable corundum inner surface.
Working Principle
Spiral Separators, which are also called Spiral Concentrators, are gravity devices that separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. The heavy frictional forces slow their velocity. As a result, faster particles higher up in the flow. This creates a horizontal density differentiation of the feed materials, with the heavy particles flowing along the inside walls of the channel, and the faster lighter particles travelling higher up towards the outer rim. The discharge outlets are located on the inside of the channel for removal of the heavier material. Separation precision can be improved by adding additional water during the beneficiation process.
Features
1. Reasonable structure and small occupation area;
2. High recovery, high efficiency, and precise separation;
3. Light in weight, rust and corrosion resistant;
4. Simple installation and Minimal maintenance requirements;
5. Low operating cost and long operating life;
6. Reliable running with minimal operator attention;
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.
Model | 5LL-400 | 5LL-600 | 5LL-900 | |
Outside Diameter (mm) | 400 | 600 | 900 | |
Pitch (mm) | 240, 180 | 450, 360, 270 | 675, 540, 405 | |
Pitch Diameter Ratio | 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | |
Lateral Slope | 9° | 9° | 9° | |
Maximum Starts per Column | 2 | 3 | 2-4 | |
Feeding Size (mm) | 0.2-0.22 | 0.2-0.22 | 0.3-0.03 | |
Feeding Density (%) | 25-55 | 25-55 | 25-55 | |
Capacity (t/hr) | 0.15-0.2 | 0.8-1.2 | 2-3 | |
External Size | Length (mm) | 460 | 700 | 1060 |
Width (mm) | 460 | 700 | 1060 | |
Height (mm) | 1500 | 2600 | 4000 | |
Weight (kg) | 50 | 150 | 400 |
