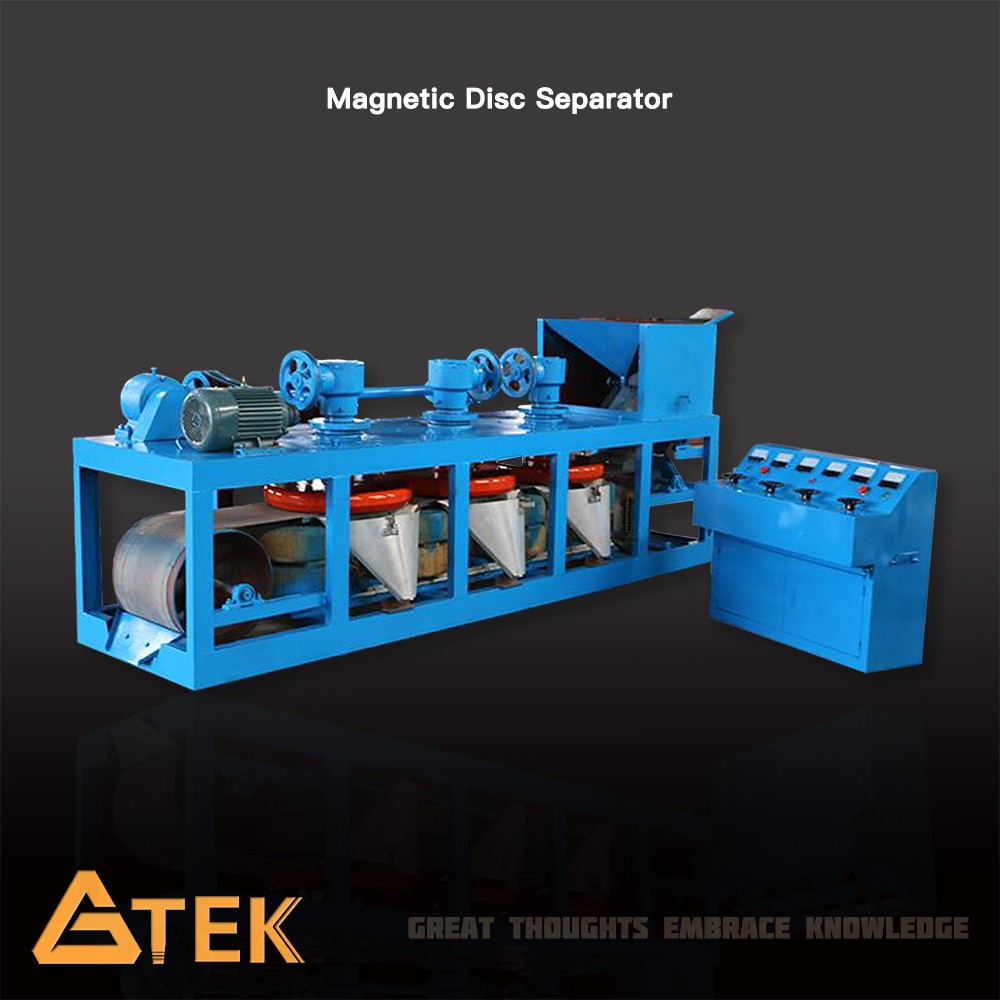

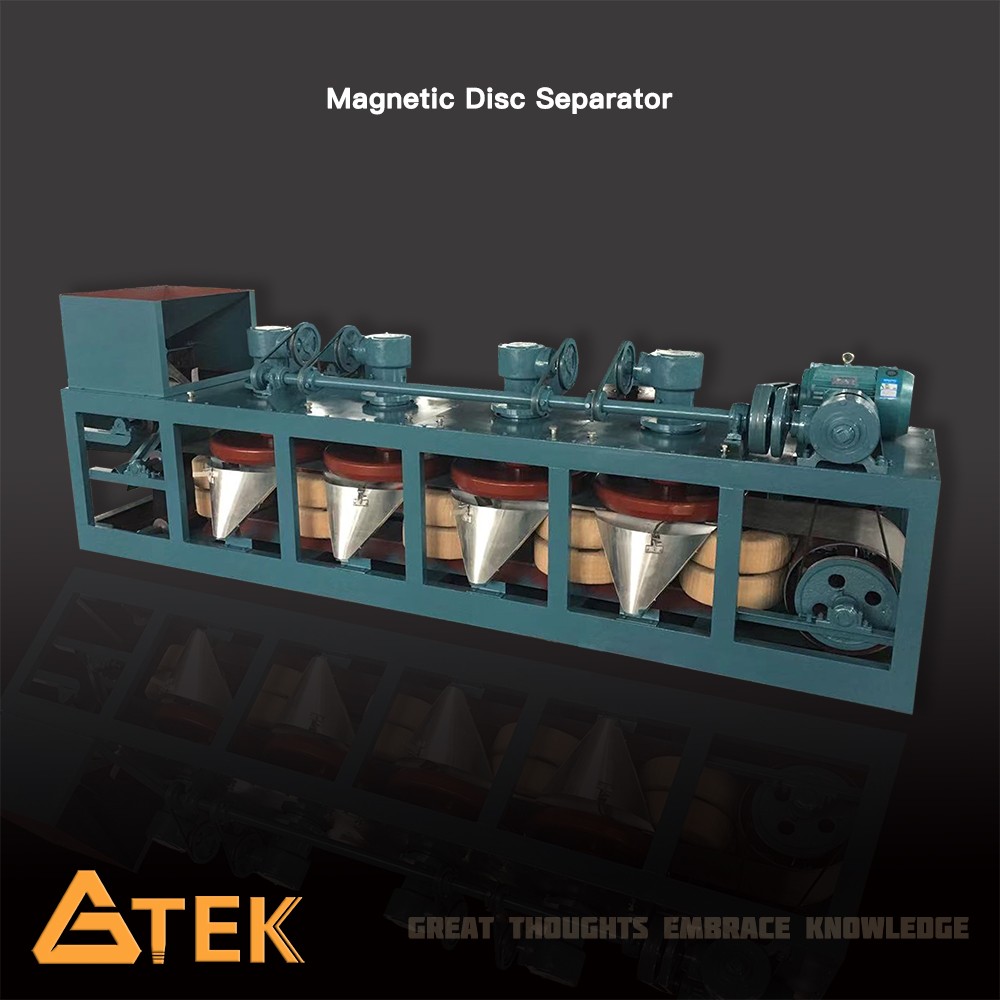

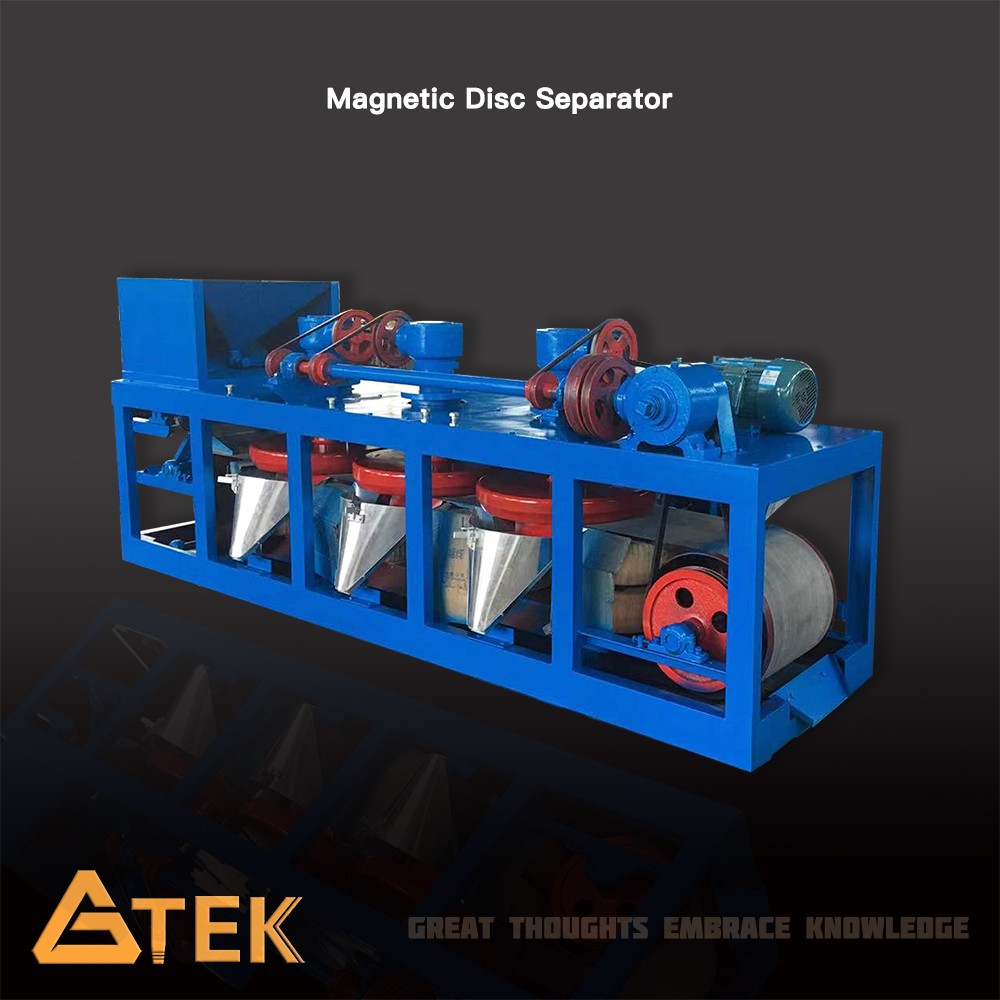

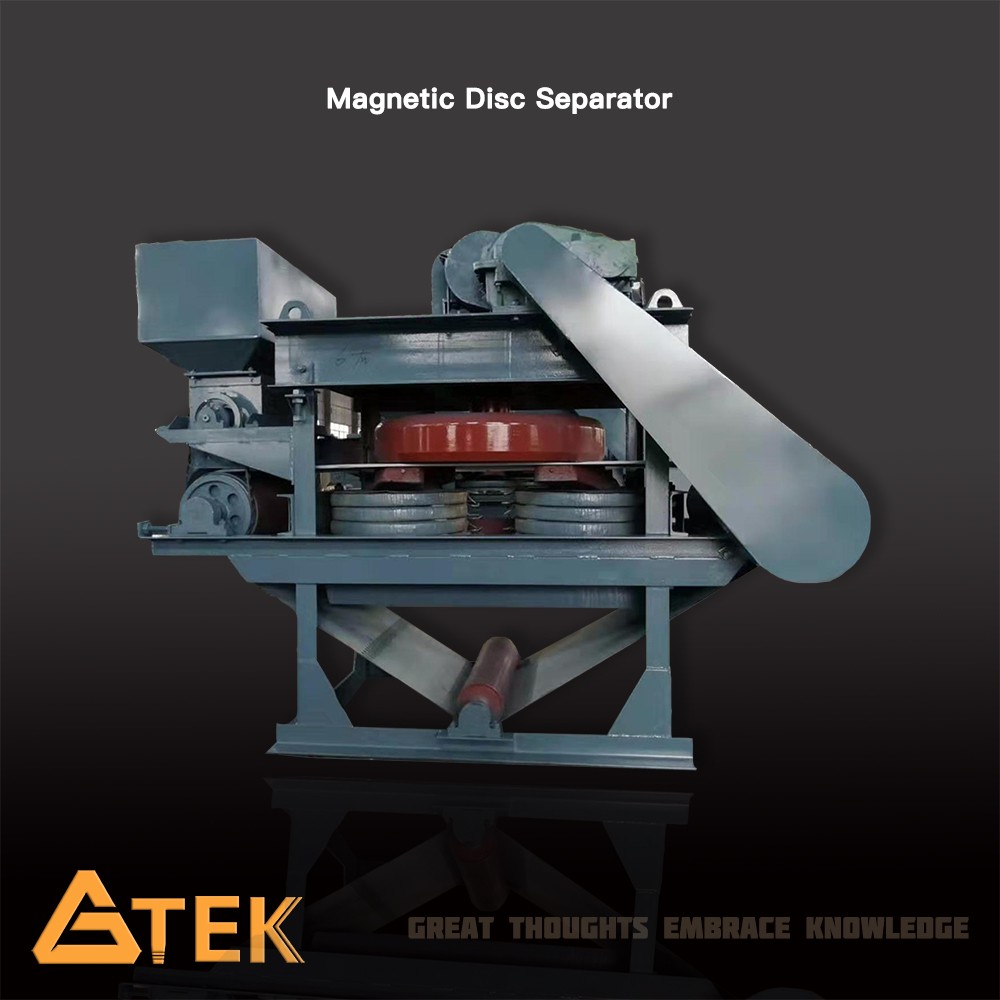

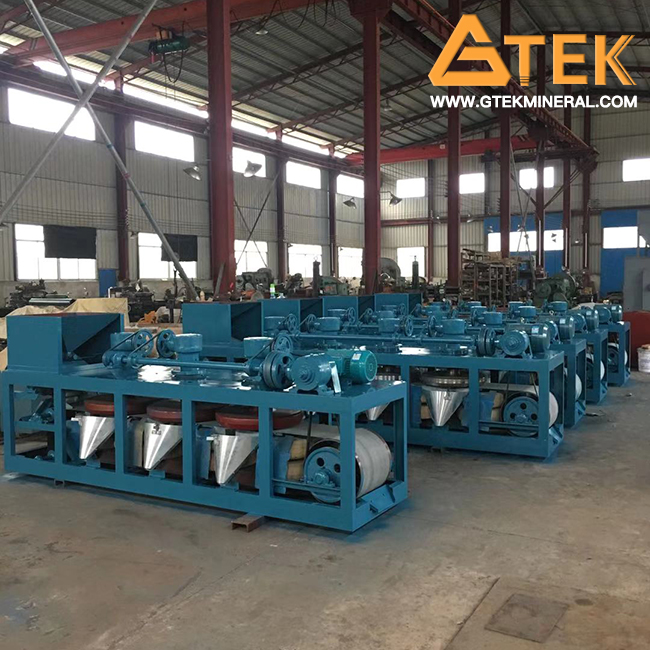

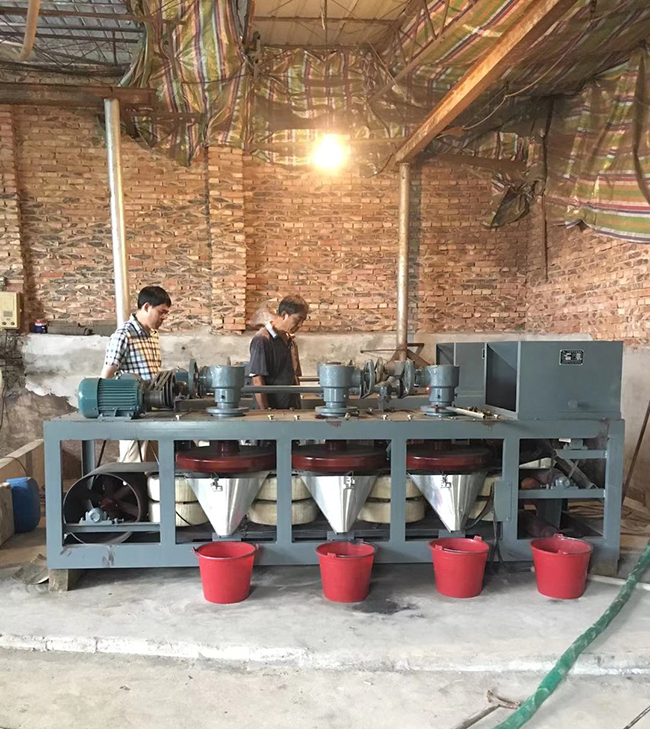

GTEK Magnetic Disc Separator is designed for continuous separation of materials that have varied magnetic susceptibilities.
Description
GTEK Magnetic Disc Separator or High Intensity Electromagnetic Disc Separator is designed for continuous separation of materials that have varied magnetic susceptibilities. GTEK can offer magnetic disc separator of Single Disc to Four Disc models in order to suit different applications. Each disc is designed to offer varied range of intensity. This facilitates separartion of minerals of different susceptibilities in a single operation. Magnetic intensity is variable from 0 to 20,000 gauss and can be adjusted by varying the current of each coil to suit each client's specific mineral separation requirements. Each electromagnetic disc can be set at a different height from the conveyor belt to get different magnetic force. Optimum selectivity can be accurately achieved by combining disc height adjustment with variation of coil curreny from the control panel.
Our Magnetic Disc Separatior can be used in the following application:
Concentration of dry, granular minerals such as ilmenite, gamet, monazite, wolframite, and columbite-tantalite (Coltan);
Removal of minerals of low magnetic susceptibility from cassiterite, zircon, scheelite and rutile;
Purification of quartz for the glassmaking industry;
Purification of abrasives;
Extraction of iron oxides from chenmical and food products;
Separation of different types of swarf.
Working Principle
Features
Single operation for separarting of minerals of different susceptibilities;
Easy to maintain;
High efficiency.
Model | CP3-500 | CP3-500 (rare-earth separation) | CP3-600 |
Magnetic Intensity | 1700mT at 2mm height | 2000mT at 2mm height | 1800mT at 2mm height |
Disc Quantity | 3 | 3 | 3 |
Disc Rotation Speed | 25-40r/min | 22-38r/min | 22-38r/min |
Disc Diameter | 500mm | 500mm | 500mm |
Power | 380V 3P | 380V 3P | 380V 3P |
Excitation Coil | 4 | 4 | 4 |
Excitation Power | 1.5kW | 1.5kW | 1.5kW |
Max. Coil Temperature | 65℃ | 65℃ | 65℃ |
Rated Current of Coil | 1.2-1.9A | 1.2-1.9A | 1.2-1.9A |
Max. Feeding Size | 2mm | 2mm | 2mm |
Dimension | 2800*800*1220mm | 3150*900*1250mm | 3150*900*1250mm |
Capacity | 100-500kg/hr | 80-800kg/hr | 120-800kg/hr |
Weight | 1900kg | 2300kg | 2200kg |
