RCDD Cross Belt Magnetic Separator


RCDD Series Cross Belt Magnetic Separator is a suspended electromagnet with a continuously running belt and is designed for separation of ferrous metal from a variety of over-the-belt conveyor applications.





Ask For Quote PDF Download

Description

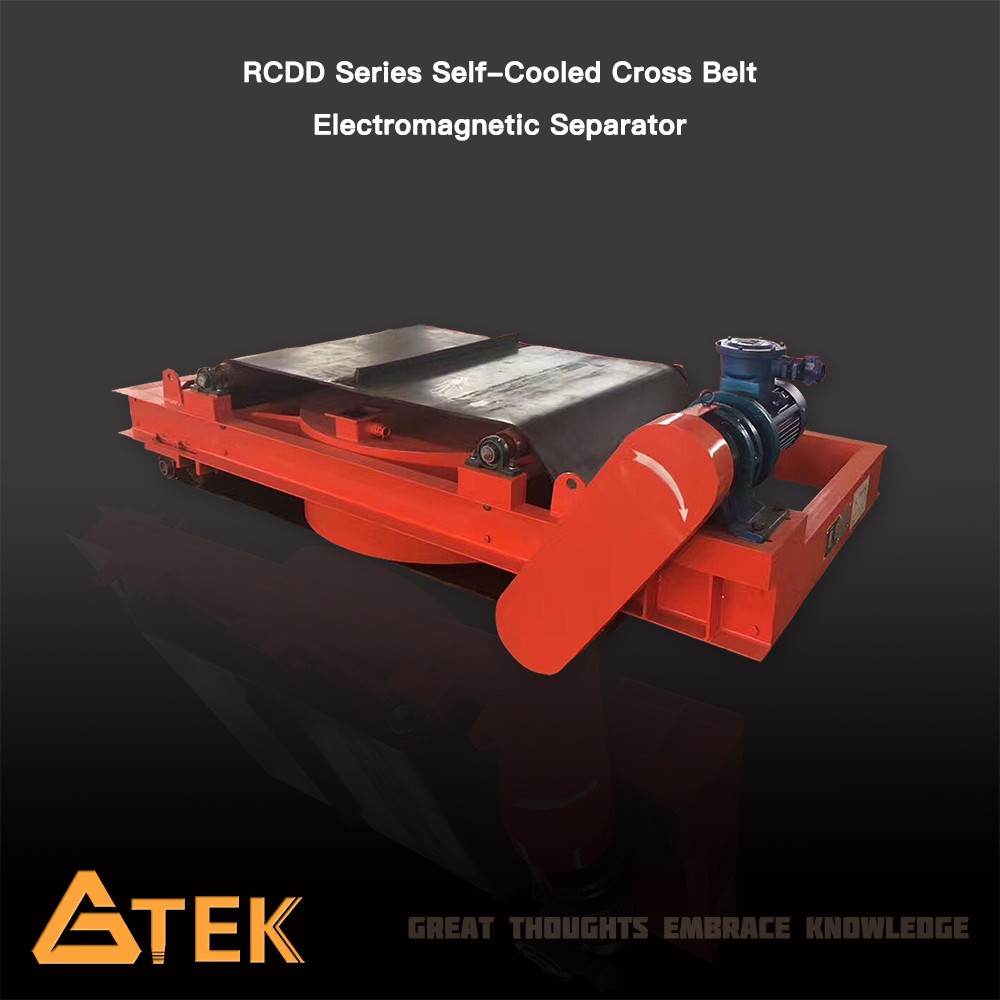

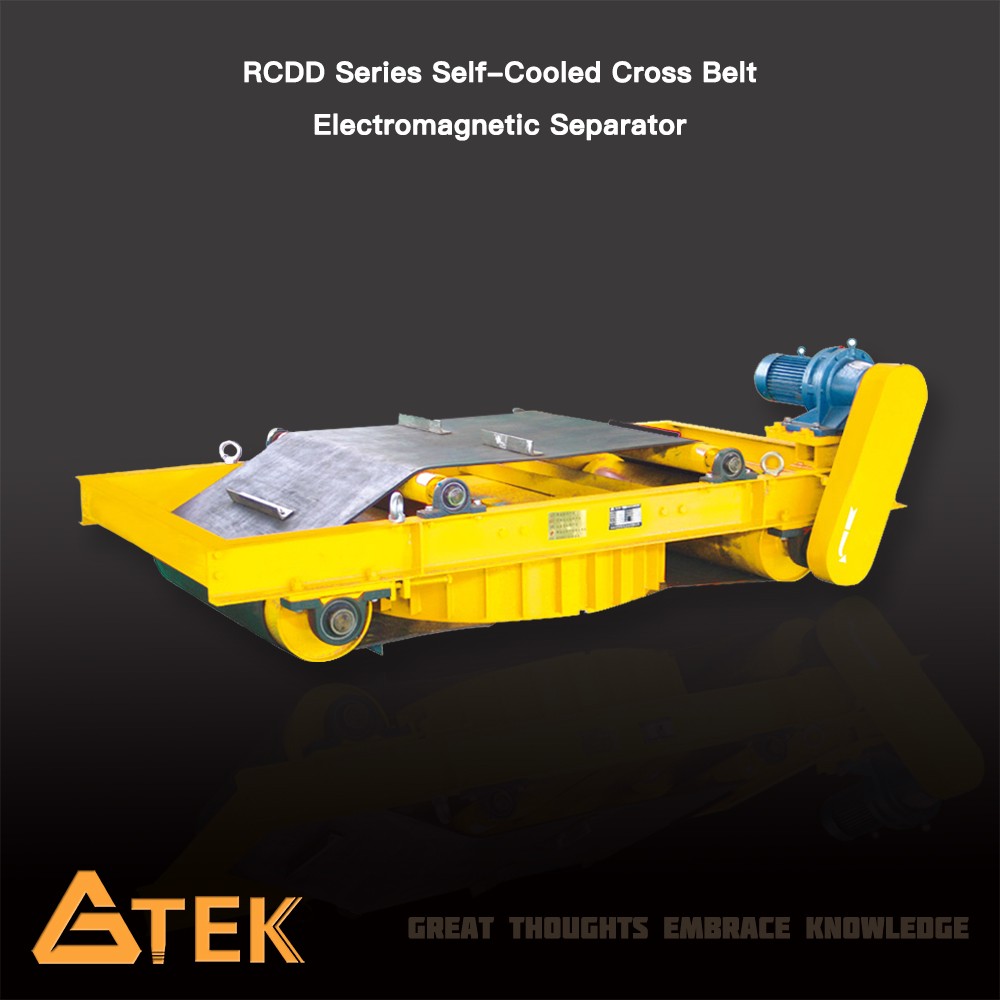

GTEK RCDD Series self-unloading, self-cooling cross belt magnetic separator is a suspended RCDB electromagnet with a continuously running belt and is designed for separation of ferrous metal from a variety of over-the-belt conveyor applications. GTEK designed and manufactured cross belt magnetic separators to provide industry with a reliable and extremely effective means of metal extraction.The cross belt magnet is manufactured with a high intensity electromagnet, heavy duty steel frame, vulcanized rubber cleated belt, a motor and reducer. The magnet may be suspended either cross belt (perpendicular to the product flow) or inline (parallel above the product flow).

GTEK Cross belt magnetic separators are used across many industries for extraction of tramp metal including including coal processing, aggregate recycling, crushing and shredding applications, concrete and asphalt recycling, scrap yard recycling, slag processing, tire recycling and wood processing.

Depending on the different application environment. We also provide other options as below:

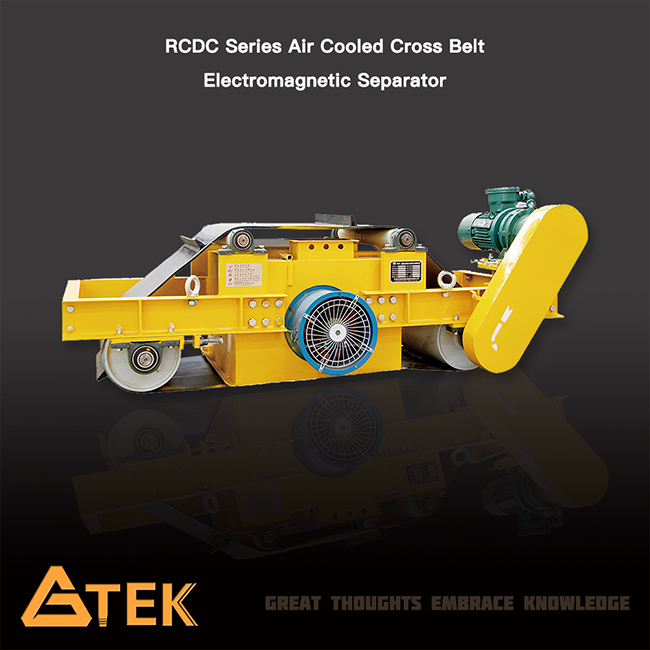

RCDC Air Cooled Cross Belt Electromagnetic Separator

Application: Good environment,such like steel plants, Cements plants, Power plants.It is generaly used to remove Iron from slag and protect roller press and crusher.

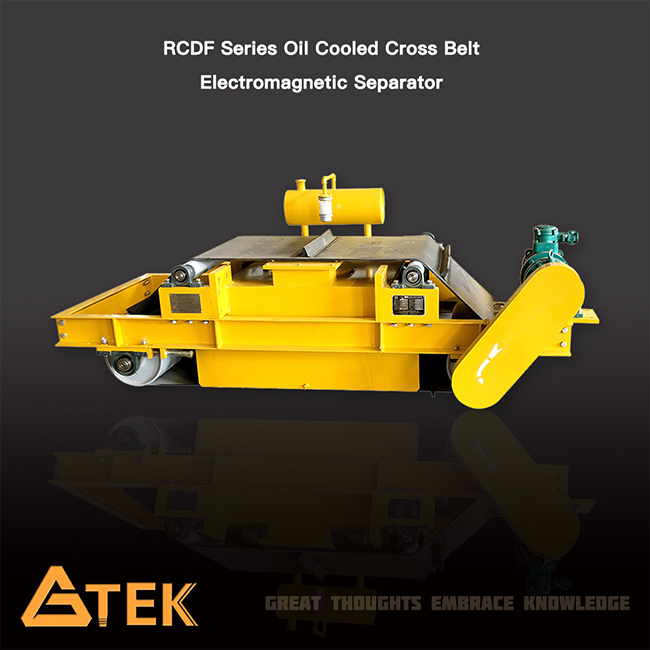

RCDF Oil Cooled Cross Belt Electromagnetic Separator

Application: various harsh environments.

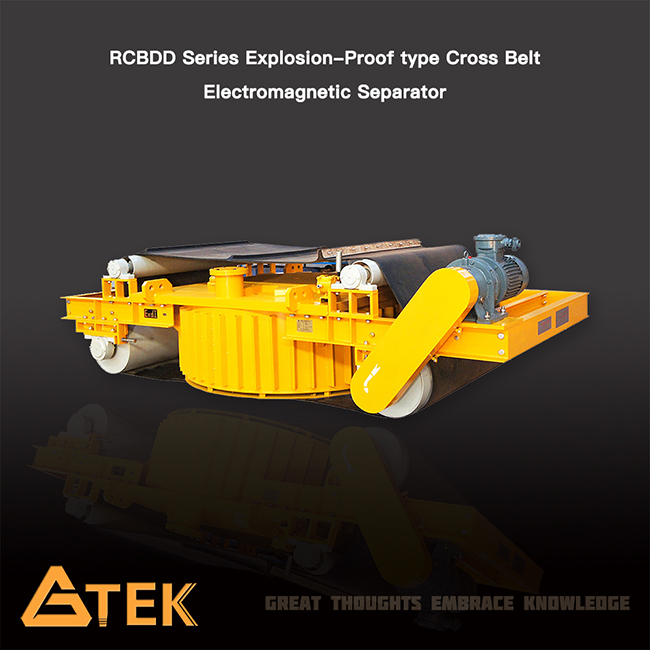

RCBDD Explosion-Proof Cross Belt Electromagnetic Separator

Application: Methane containing environment or mines with coal-dust.


Working Principle

The major components of RCDD Series Cross Belt Magnetic Separator are a electromagnet with a continuously running belt. The electromagnet converts electricity to magnetism by an electric current. When the ferrous matels pass through the high intensity magnetic area, they will be absorbed to the running belt by magnetic force and be transported to non-magnetic area where they fall off. So that the RCDD Series Cross Belt Magnetic Separator can separate ferrous matels from others constantly.

Features

1. High intensity electromagnet used, creating a magnetic filed with maximum depth for the size and application required;

2. Cooling way options available;

3. Good for heavy contaminated products;

4. Different electromagnetic strengths for difference suspension heights to fit your applications;

5. Sizes to fit for any belt width;

6. Special requirements can be custom built.


Model

Adaptive belt width (mm)

Suspension

height (mm)

Material thickness (mm)

Magnetic field intensity

(mT)

Driving

Power

(kw)

Adaptive belt speed  (m/s)

Weight (kg)

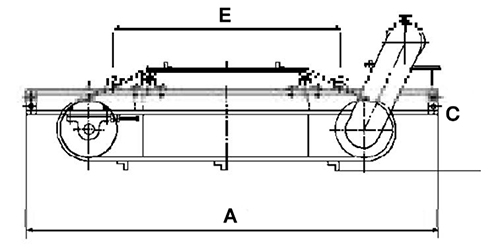

Size (mm)

A

B

C

D

E

RCDD-5

500

150

100

60

1.5

4.5

950

1980

920

750

708

1000

RCDD-6

600

175

130

60

1.5

1380

2140

1100

750

858

1200

RCDD-6.5

650

200

150

70

2.2

1490

2275

1100

820

888

1240

RCDD-8

800

250

200

70

2.2

1770

2520

1350

865

1088

1300

RCDD-10

1000

300

250

70

3.0

2380

2750

1635

940

1335

1500

RCDD-12

1200

350

300

70

4.0

3170

2950

1750

950

1518

1700

RCDD-14

1400

400

350

70

4.0

4800

3150

2050

950

1755

1900

RCDD-16

1600

450

400

70

5.5

6300

3750

2240

1180

1980

2050

RCDD-18

1800

500

450

70

7.5

8800

3950

2450

1290

2200

2200

RCDD-20

2000

550

500

70

7.5

11200

4350

2600

1350

2250

2300
