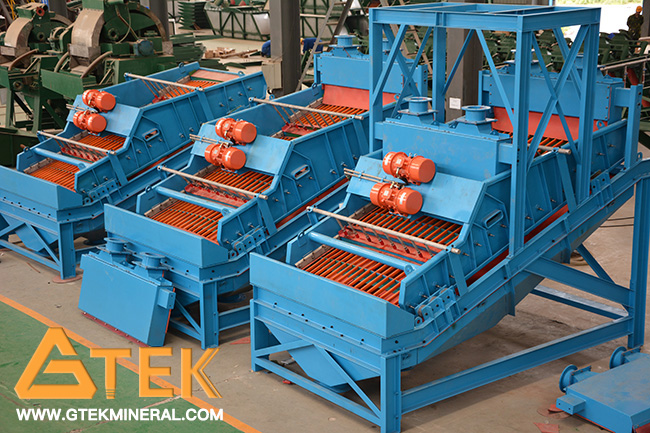

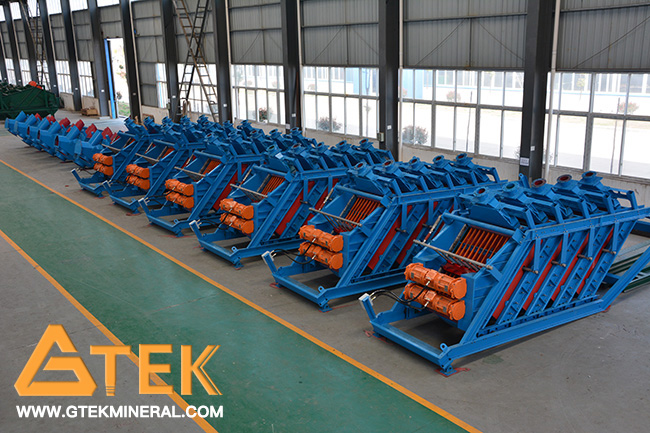

High Frequency Vibrating Screen


Ask For Quote PDF Download

Description

The high frequency stack sizer screening machine consists of up to five decks positioned one above the other and all operating in parallel. A single feed is introduced to the decks of stack sizer at five separate feed points. Two super G vibrating motors rotating in opposite directions produce a uniform high frequency liner motion throughout the entire length for superior oversize conveyance. Each of the screen decks provides an undersize collection pan. The undersize from each of these pans moves to a single collection hopper below. Oversize material is transported to a single oversize collection hopper. An optional repulping system is available for the stack sizer in which spray water is directed into a rubber-lined trough located between the two panels on each deck. With this feature, oversize from the first panel is reslurried and screened again on the second panel. Screening efficiency is increased by utilizing repulping system.

Known for their high capacity and superior separation efficiency, GTEK’s High Frequency Vibrating Screen can be used to process the following:

Iron ore

Copper

Lead and Zinc

Coal

Feldspar

Silica sand

Kaolin

Phosphate

Tin

Titanium

Tantalum/Niobium

Tungsten





Working Principle

A single feed is introduced to the decks of stack sizer at five separate feed points. Two super G vibrating motors rotating in opposite directions produce a uniform high frequency liner motion throughout the entire length for superior oversize conveyance. Each of the screen decks provides an undersize collection pan. The undersize from each of these pans moves to a single collection hopper below. Oversize material is transported to a single oversize collection hopper.

Features

1. Large processing capacity and high separation efficiency;

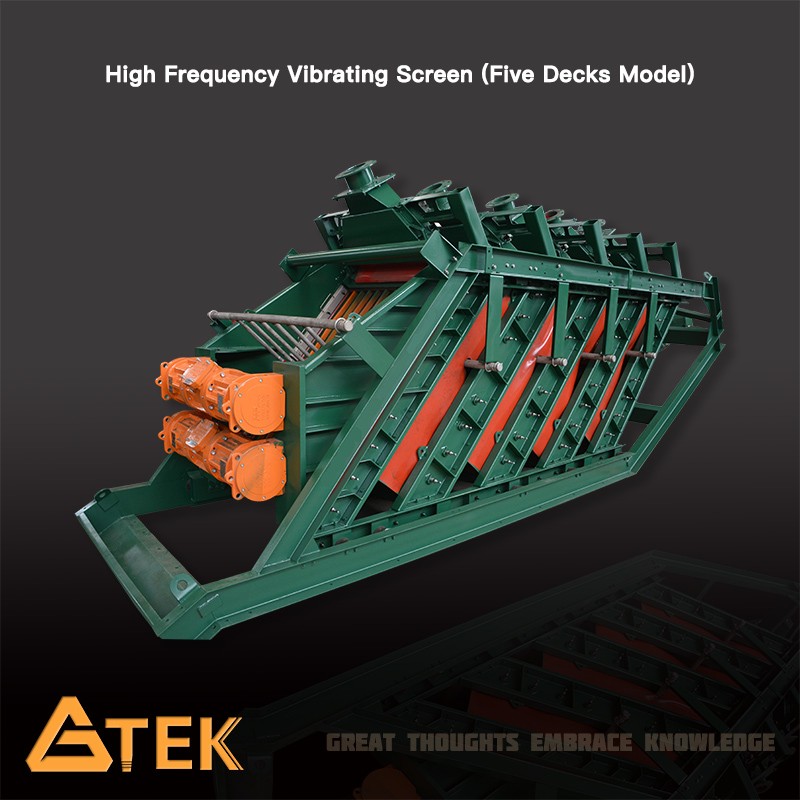

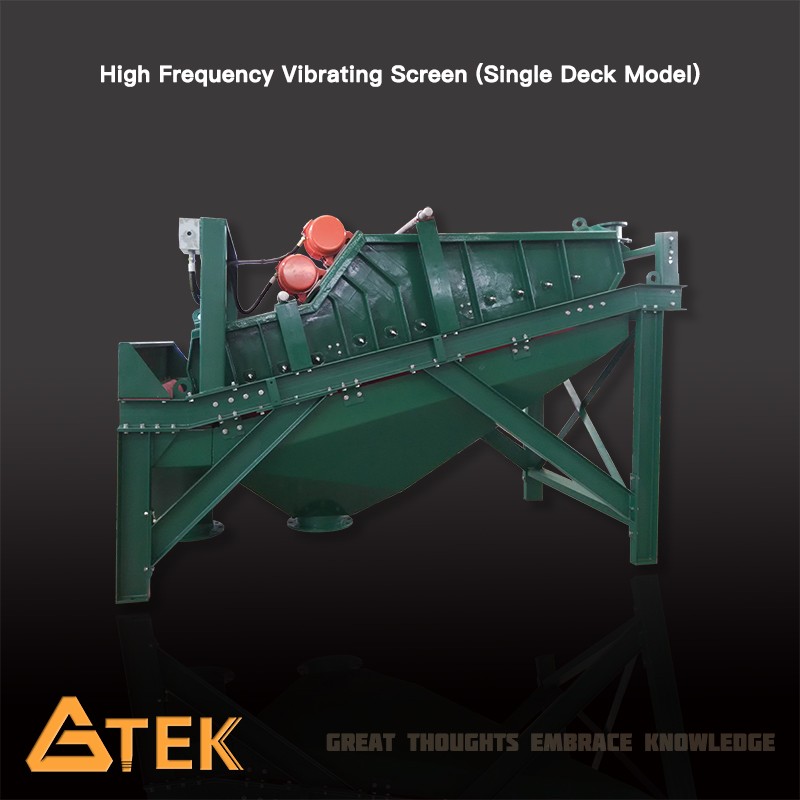

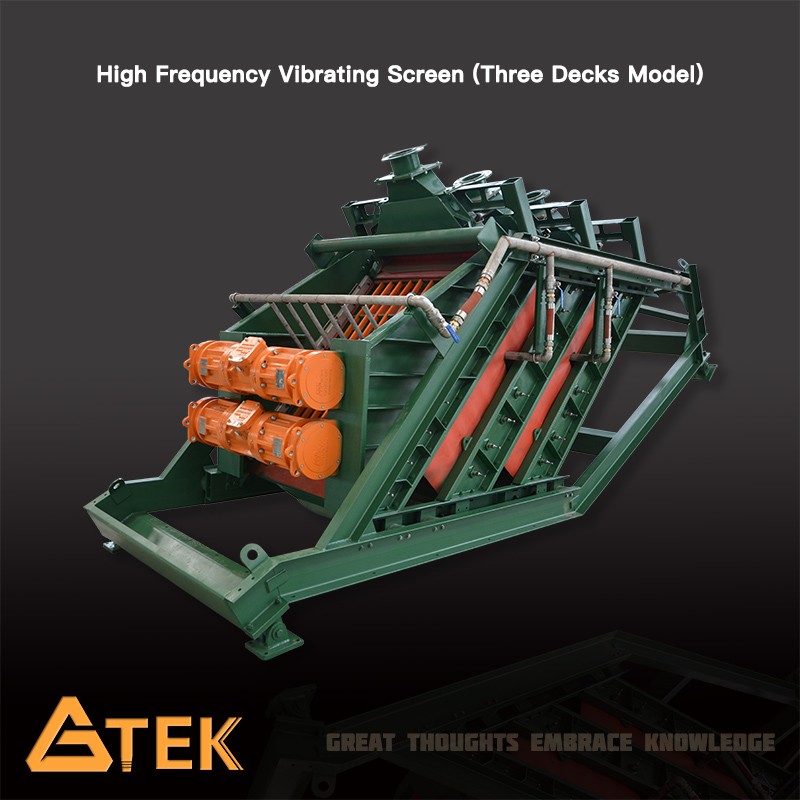

2. Available in 1,2,3,4,5 deck configurations, capacity requirements achieved in a minimal amount of floor space;

3. Low noise, low power consumption and low dynamic loads, no special requirement for foundation;

4. Linear motion produces superior screening efficiency and maximum oversize conveyance;

5. High opening area, high wear, urethane screen surface, and will not blind with nearest particles;

6. Available with re-pulping system to further improve fines removal and provide an cleaner oversize;

7. Large space provided between screen deck and surface access.


Technical Parameter
