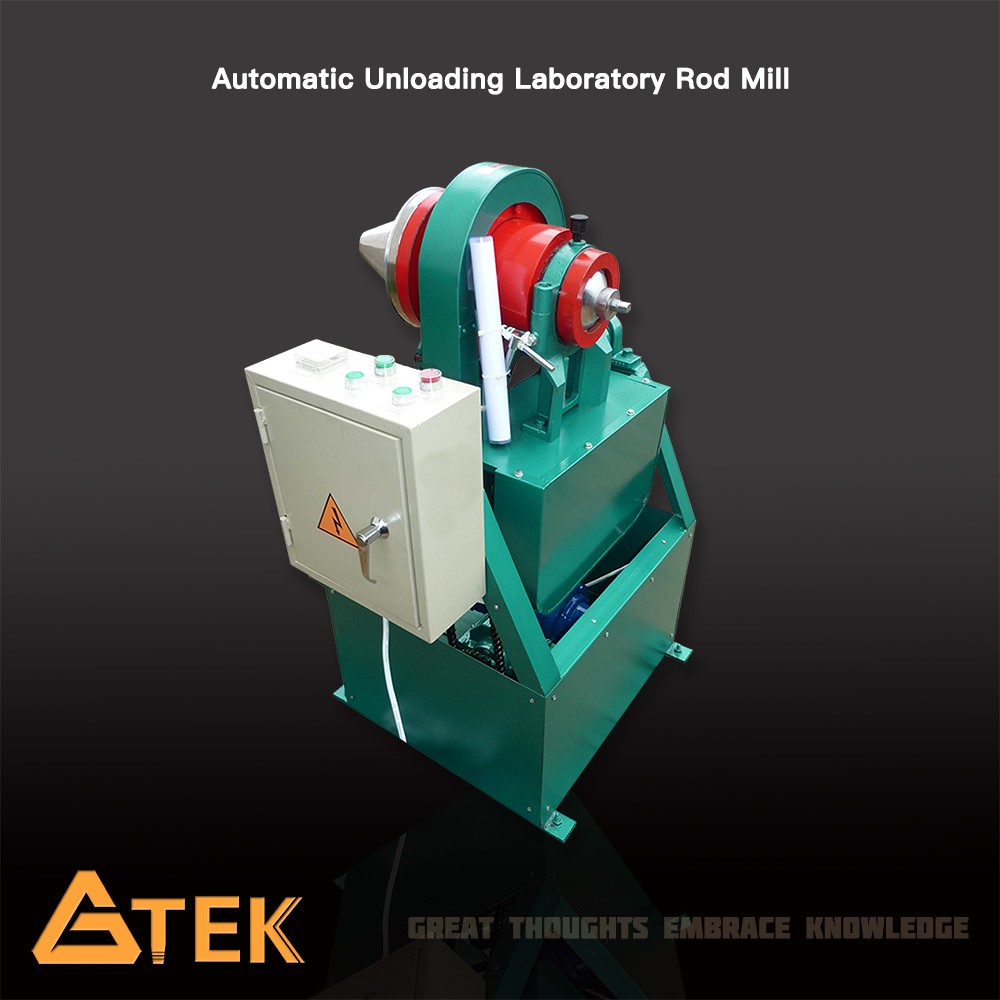

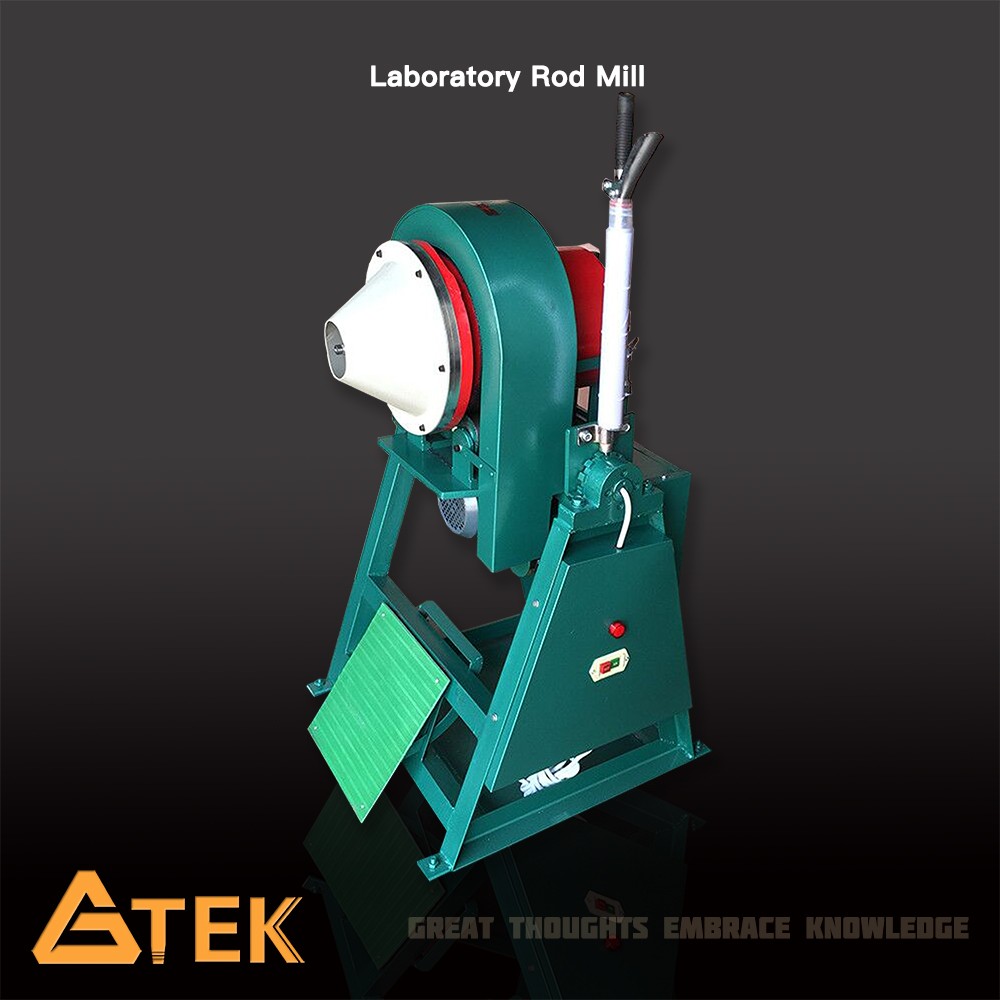

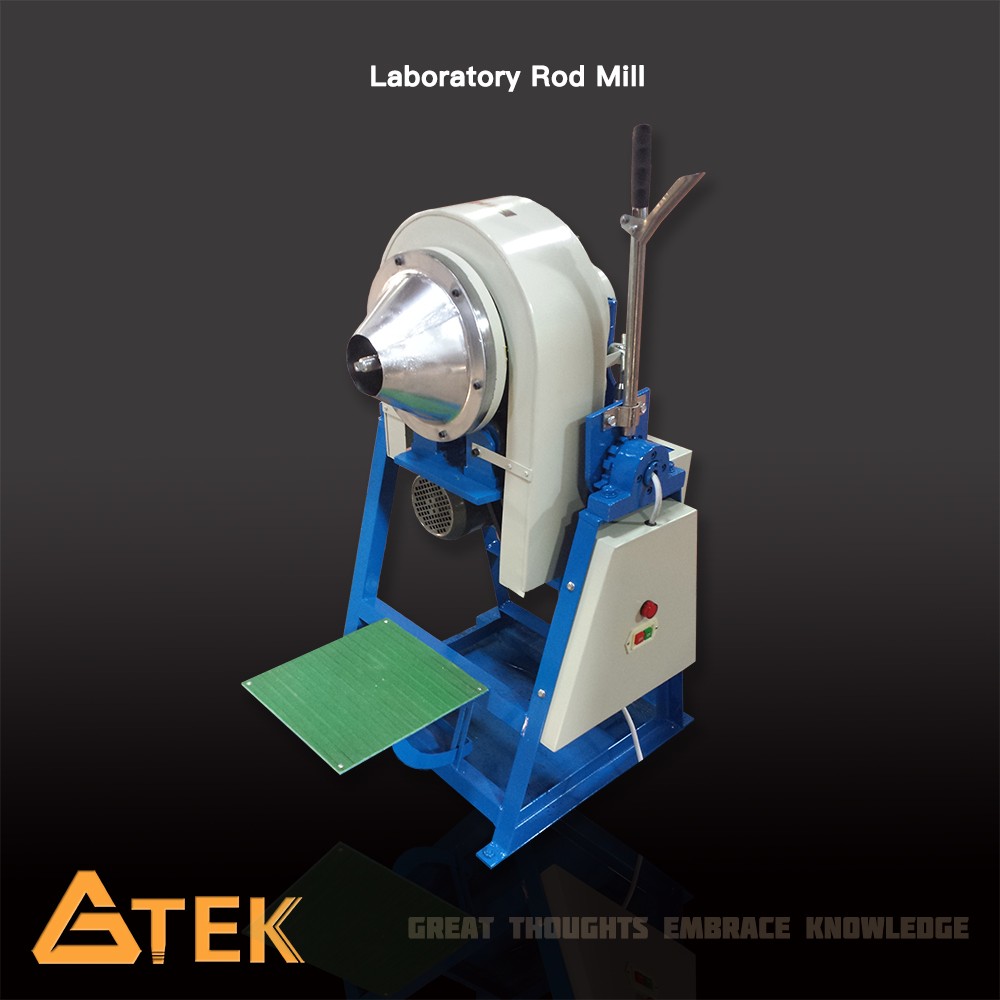

GTEK XMB series Rod Ball Mill is an efficient laboratory grinding equipment for wet grinding of ore or other materials. Lab Rod Mill is commonly used as a grinder for mineral feasibility study and for heavy concentrate reduction.
Description
GTEK XMB series rod ball mill is an efficient laboratory grinding equipment for wet grinding of ore or other materials. Steel balls can be used as grinding medium instead of steel rods. In rod grinding operation, particle sizes of final product are relatively uniform and ore overgrinding can be eliminated. Generally speaking, lab rod mill is commonly used as a grinder for mineral feasibility study and for heavy concentrate reduction.
Working Principle
The nodular graphite iron drum is connected with the big belt wheel by screw bolt. The one end of drum is open, and the other end hollow trunnion. Both ends are withstood by a pair of support and base bearing. The base bearing seat and support frame are mounted on support frame which can rotate in 180°.
The support plate are mounted on the frame with two bearing seat. The slewing ring can rotate 22.5°, 67.35°and 90° left and right from horizontal through control handle and alignment plate, so that ore loading, discharging, rod taking out, and rustproof fluid filling can be accomplished.
The right end of the drum is with ore feeding stopper, the left end with ore discharging cap, when the rod mill is working, tighten the screw bolt in a clockwise direction with a special wrench until the rubber gasket in the discharge cap tighten the screw bolt three or four turns, the cap withdraw outside 6~10mm, and without taking the cap away, the ore can be discharged. The discharge end is coupled with slurry collecting cover, so that the slurry splash phenomenon can be avoided completely.
Features
1.Exquisite design, small and compact structure;
2.Uniform discharging size and overgrinding can effectively be prevented;
3.High efficiency and easy operation.
Item |
XMB160×200 |
XMB200×240 |
XMB240×300 |
Unit | ||||||||
Drum(Diameter×Length) | 160×200 | 200×240 | 240×300 | mm | ||||||||
Volume | 4.02 | 7.5 | 13.57 | L | ||||||||
Capacity | 300~800 | 500~1000 | 1000~5000 | g | ||||||||
Feed Size | -2 | -2 | -3 | mm | ||||||||
Discharge Size | -0.074 | -0.74 | -0.074 | mm | ||||||||
Drum Speed | 120 | 110 | 96 | r/min | ||||||||
Motor | Model | A02-7114 | y801-4 | y801-4 |
| |||||||
Power | 0.25 | 0.55 | 0.55 | kw | ||||||||
Speed | 1400 | 1390 | 1390 | r/min | ||||||||
Grinding Media |
Steel Rod | Diameter | 18 | 20 | 15 | 18 | 22 | 15 | 18 | 22 | mm | |
Length | 185 | 225 | 286 | mm | ||||||||
qty | 10 | 9 | 17 | 9 | 9 | 33 | 13 | 6 | pcs | |||
Weight | 3.55 | 4.09 | 4.9 | 4.2 | 4.9 | 12.79 | 7.48 | 5.02 | kg | |||
Steel ball | Diameter | 20 | 25 | 30 | 20 | 25 | 30 | 20 | 25 | 30 | mm | |
qty | 100 | 26 | 5 | 136 | 52 | 29 | 290 | 115 | 37 | ea | ||
weight | 3.31 | 1.70 | 0.56 | 4.4 | 3.3 | 3.7 | 9.57 | 7.37 | 4.1 | kg | ||
Dimensions(L×W×H) | 1052×530×1150 | 1052×615×1160 | 1052×615×1160 | mm | ||||||||
Weight | 90 | 155 | 160 | kg |
